CRM系统部署
1.前期准备
提前部署好 用户管理系统
2.后端开启CRM系统
CRM 即客户关系管理系统，帮助企业管理客户，包含：「待办事项」「线索管理」「客户管理」「联系人管理」「客户公海」「商机管理」「合同管理」「回款计划」「还款管理」「产品管理」「数据统计」等功能
CRM系统未开启出现报错, CRM系统使用需要开启：CRM与BPM-流程模块

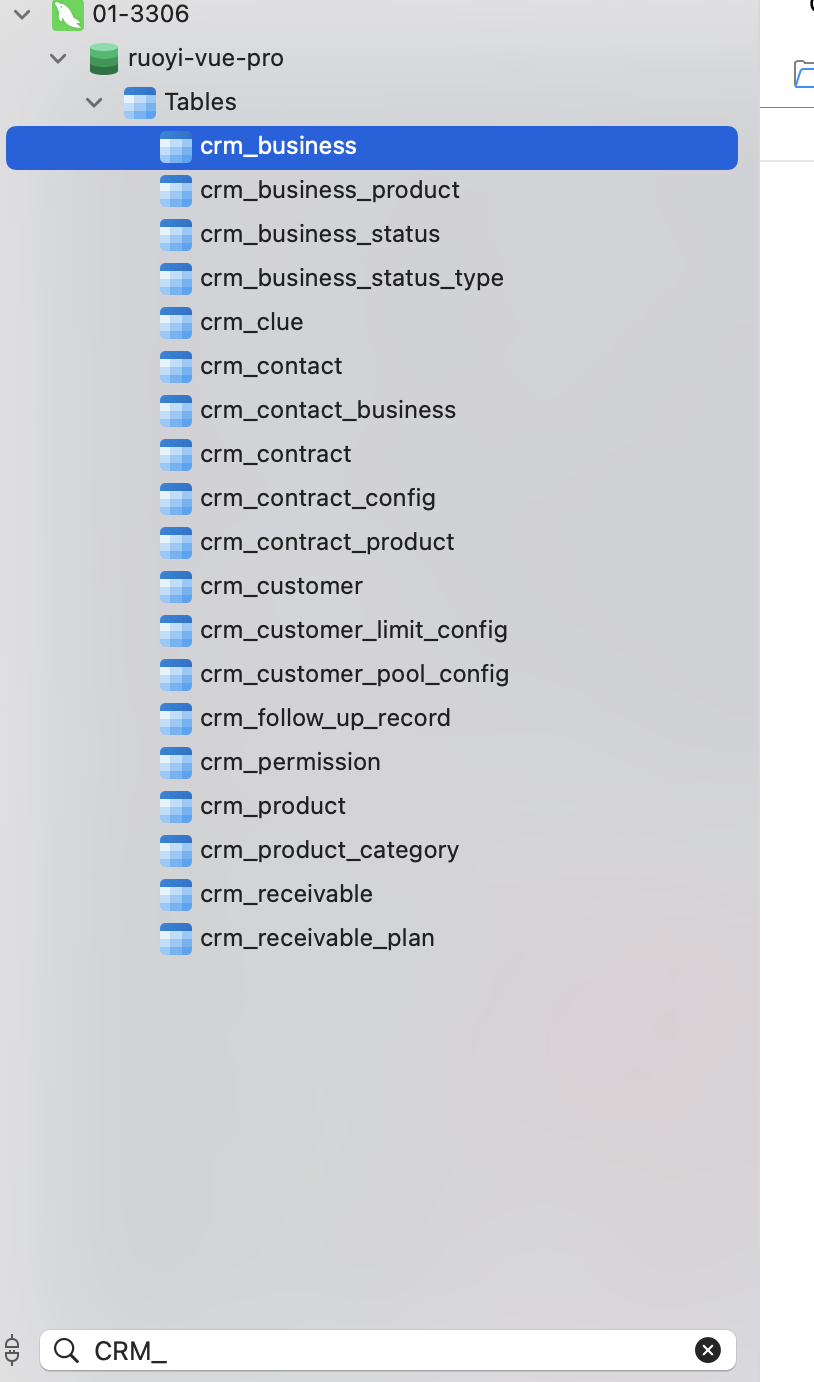

导入会员SQL文件 crm-2024-09-30.sql 到 rouyi-vue-pro 库，导入成功出现19张 crm_开头的表

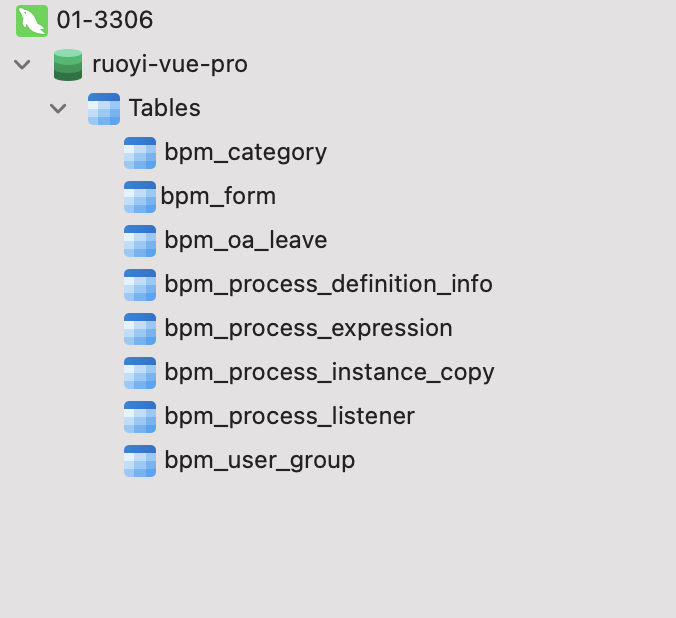

导入流程SQL文件 bpm-2024-11-23.sql 到 rouyi-vue-pro 库，导入成功出现8张 bpm_开头的表
取消根目录下 pom.xml 的 crm / bpm module模块注释。
取消yudao-server 目录下 pom.xml的 crm /bpm module模块注释。

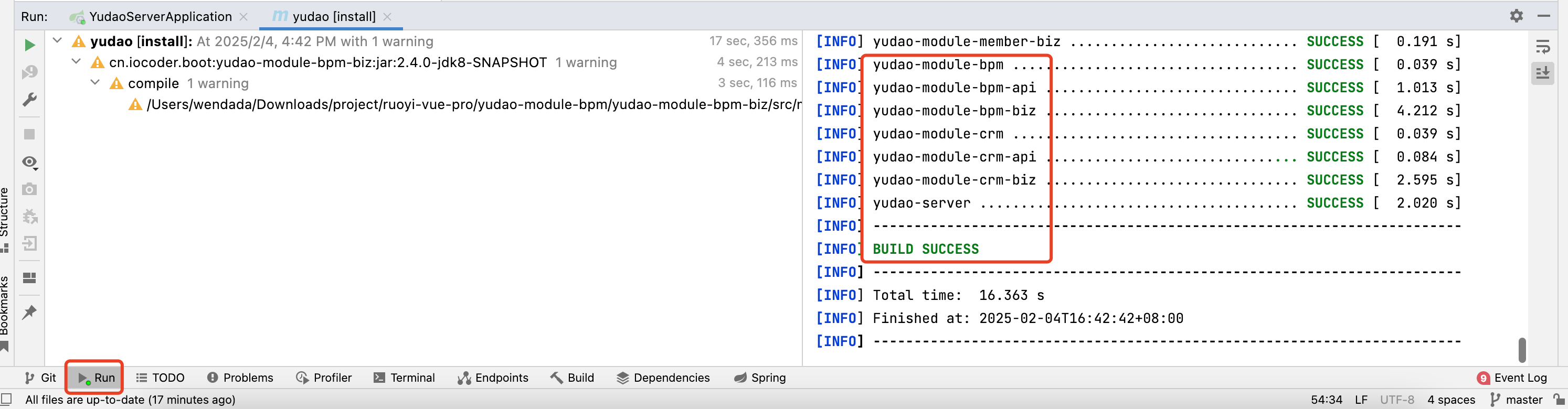

maven 重新编译打包，最终出现success
重新启动程序
可能会启动会出现报错：'runtimeServiceBean' defined in class path resource [org/flowable/spring/boot/ , 是因为在mac地址下因为大小写问题导致的。
报错如下：
org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'bpmProcessInstanceApiImpl': Injection of resource dependencies failed; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'bpmProcessInstanceServiceImpl': Injection of resource dependencies failed; nested exception is org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'runtimeServiceBean' defined in class path resource [org/flowable/spring/boot/ProcessEngineServicesAutoConfiguration.class]: Unsatisfied dependency expressed through method 'runtimeServiceBean' parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'processEngine': FactoryBean threw exception on object creation; nested exception is org.flowable.common.engine.api.FlowableException: Error initialising eventregistry data model
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor.postProcessProperties(CommonAnnotationBeanPostProcessor.java:332)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1431)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:619)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542)
at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:336)
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:334)
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:209)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:955)
at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:932)
at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:591)
at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:147)
at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:732)
at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:409)
at org.springframework.boot.SpringApplication.run(SpringApplication.java:308)
at org.springframework.boot.SpringApplication.run(SpringApplication.java:1300)
at org.springframework.boot.SpringApplication.run(SpringApplication.java:1289)
at cn.iocoder.yudao.server.YudaoServerApplication.main(YudaoServerApplication.java:18)
Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'bpmProcessInstanceServiceImpl': Injection of resource dependencies failed; nested exception is org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'runtimeServiceBean' defined in class path resource [org/flowable/spring/boot/ProcessEngineServicesAutoConfiguration.class]: Unsatisfied dependency expressed through method 'runtimeServiceBean' parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'processEngine': FactoryBean threw exception on object creation; nested exception is org.flowable.common.engine.api.FlowableException: Error initialising eventregistry data model
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor.postProcessProperties(CommonAnnotationBeanPostProcessor.java:332)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1431)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:619)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542)
at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:336)
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:334)
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:209)
at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:276)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1391)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1311)
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor.autowireResource(CommonAnnotationBeanPostProcessor.java:548)
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor.getResource(CommonAnnotationBeanPostProcessor.java:524)
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor$ResourceElement.getResourceToInject(CommonAnnotationBeanPostProcessor.java:677)
at org.springframework.beans.factory.annotation.InjectionMetadata$InjectedElement.inject(InjectionMetadata.java:228)
at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:119)
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor.postProcessProperties(CommonAnnotationBeanPostProcessor.java:329)
... 17 common frames omitted
Caused by: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'runtimeServiceBean' defined in class path resource [org/flowable/spring/boot/ProcessEngineServicesAutoConfiguration.class]: Unsatisfied dependency expressed through method 'runtimeServiceBean' parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'processEngine': FactoryBean threw exception on object creation; nested exception is org.flowable.common.engine.api.FlowableException: Error initialising eventregistry data model
at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:794)
at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:532)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1352)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1195)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:582)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542)
at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:336)
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:334)
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:209)
at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:276)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1391)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1311)
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor.autowireResource(CommonAnnotationBeanPostProcessor.java:548)
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor.getResource(CommonAnnotationBeanPostProcessor.java:524)
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor$ResourceElement.getResourceToInject(CommonAnnotationBeanPostProcessor.java:677)
at org.springframework.beans.factory.annotation.InjectionMetadata$InjectedElement.inject(InjectionMetadata.java:228)
at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:119)
at org.springframework.context.annotation.CommonAnnotationBeanPostProcessor.postProcessProperties(CommonAnnotationBeanPostProcessor.java:329)
... 33 common frames omitted
Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'processEngine': FactoryBean threw exception on object creation; nested exception is org.flowable.common.engine.api.FlowableException: Error initialising eventregistry data model
at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.doGetObjectFromFactoryBean(FactoryBeanRegistrySupport.java:176)
at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.getObjectFromFactoryBean(FactoryBeanRegistrySupport.java:101)
at org.springframework.beans.factory.support.AbstractBeanFactory.getObjectForBeanInstance(AbstractBeanFactory.java:1899)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.getObjectForBeanInstance(AbstractAutowireCapableBeanFactory.java:1284)
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:346)
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:209)
at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:276)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1391)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1311)
at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:904)
at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:781)
... 51 common frames omitted
Caused by: org.flowable.common.engine.api.FlowableException: Error initialising eventregistry data model
at org.flowable.common.engine.impl.db.LiquibaseBasedSchemaManager.initSchema(LiquibaseBasedSchemaManager.java:88)
at org.flowable.eventregistry.impl.db.EventDbSchemaManager.initSchema(EventDbSchemaManager.java:36)
at org.flowable.eventregistry.impl.cmd.SchemaOperationsEventRegistryEngineBuild.execute(SchemaOperationsEventRegistryEngineBuild.java:29)
at org.flowable.eventregistry.impl.cmd.SchemaOperationsEventRegistryEngineBuild.execute(SchemaOperationsEventRegistryEngineBuild.java:24)
at org.flowable.common.engine.impl.interceptor.DefaultCommandInvoker.execute(DefaultCommandInvoker.java:22)
at org.flowable.common.engine.impl.interceptor.TransactionContextInterceptor.execute(TransactionContextInterceptor.java:53)
at org.flowable.common.engine.impl.interceptor.CommandContextInterceptor.execute(CommandContextInterceptor.java:105)
at org.flowable.common.spring.SpringTransactionInterceptor.lambda$execute$0(SpringTransactionInterceptor.java:57)
at org.springframework.transaction.support.TransactionTemplate.execute(TransactionTemplate.java:140)
at org.flowable.common.spring.SpringTransactionInterceptor.execute(SpringTransactionInterceptor.java:57)
at org.flowable.common.engine.impl.interceptor.LogInterceptor.execute(LogInterceptor.java:30)
at org.flowable.common.engine.impl.cfg.CommandExecutorImpl.execute(CommandExecutorImpl.java:56)
at org.flowable.eventregistry.impl.EventRegistryEngineImpl.<init>(EventRegistryEngineImpl.java:47)
at org.flowable.eventregistry.impl.EventRegistryEngineConfiguration.buildEventRegistryEngine(EventRegistryEngineConfiguration.java:208)
at org.flowable.eventregistry.spring.SpringEventRegistryEngineConfiguration.buildEventRegistryEngine(SpringEventRegistryEngineConfiguration.java:73)
at org.flowable.eventregistry.spring.configurator.SpringEventRegistryConfigurator.initEventRegistryEngine(SpringEventRegistryConfigurator.java:57)
at org.flowable.eventregistry.spring.configurator.SpringEventRegistryConfigurator.configure(SpringEventRegistryConfigurator.java:47)
at org.flowable.common.engine.impl.AbstractEngineConfiguration.configuratorsAfterInit(AbstractEngineConfiguration.java:1120)
at org.flowable.engine.impl.cfg.ProcessEngineConfigurationImpl.init(ProcessEngineConfigurationImpl.java:1022)
at org.flowable.engine.impl.cfg.ProcessEngineConfigurationImpl.buildProcessEngine(ProcessEngineConfigurationImpl.java:906)
at org.flowable.spring.SpringProcessEngineConfiguration.buildProcessEngine(SpringProcessEngineConfiguration.java:76)
at org.flowable.spring.ProcessEngineFactoryBean.getObject(ProcessEngineFactoryBean.java:59)
at org.flowable.spring.ProcessEngineFactoryBean.getObject(ProcessEngineFactoryBean.java:32)
at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.doGetObjectFromFactoryBean(FactoryBeanRegistrySupport.java:169)
... 61 common frames omitted
Caused by: org.flowable.common.engine.api.FlowableException: Could not update Flowable database schema: unknown version from database: '7.0.1.1'
at org.flowable.common.engine.impl.FlowableVersions.getFlowableVersionIndexForDbVersion(FlowableVersions.java:192)
at org.flowable.common.engine.impl.db.ServiceSqlScriptBasedDbSchemaManager.schemaUpdate(ServiceSqlScriptBasedDbSchemaManager.java:80)
at org.flowable.common.engine.impl.db.ServiceSqlScriptBasedDbSchemaManager.schemaUpdate(ServiceSqlScriptBasedDbSchemaManager.java:65)
at org.flowable.eventregistry.impl.db.EventDbSchemaManager.schemaUpdate(EventDbSchemaManager.java:62)
at liquibase.Scope.lambda$child$0(Scope.java:180)
at liquibase.Scope.child(Scope.java:189)
at liquibase.Scope.child(Scope.java:179)
at liquibase.Scope.child(Scope.java:158)
at org.flowable.common.engine.impl.db.LiquibaseBasedSchemaManager.runForLiquibase(LiquibaseBasedSchemaManager.java:93)
at org.flowable.common.engine.impl.db.LiquibaseBasedSchemaManager.initSchema(LiquibaseBasedSchemaManager.java:81)
... 84 common frames omitted解决办法： 设置：lower_case_table_names=1 参考：https://blog.csdn.net/changyana/article/details/123293459

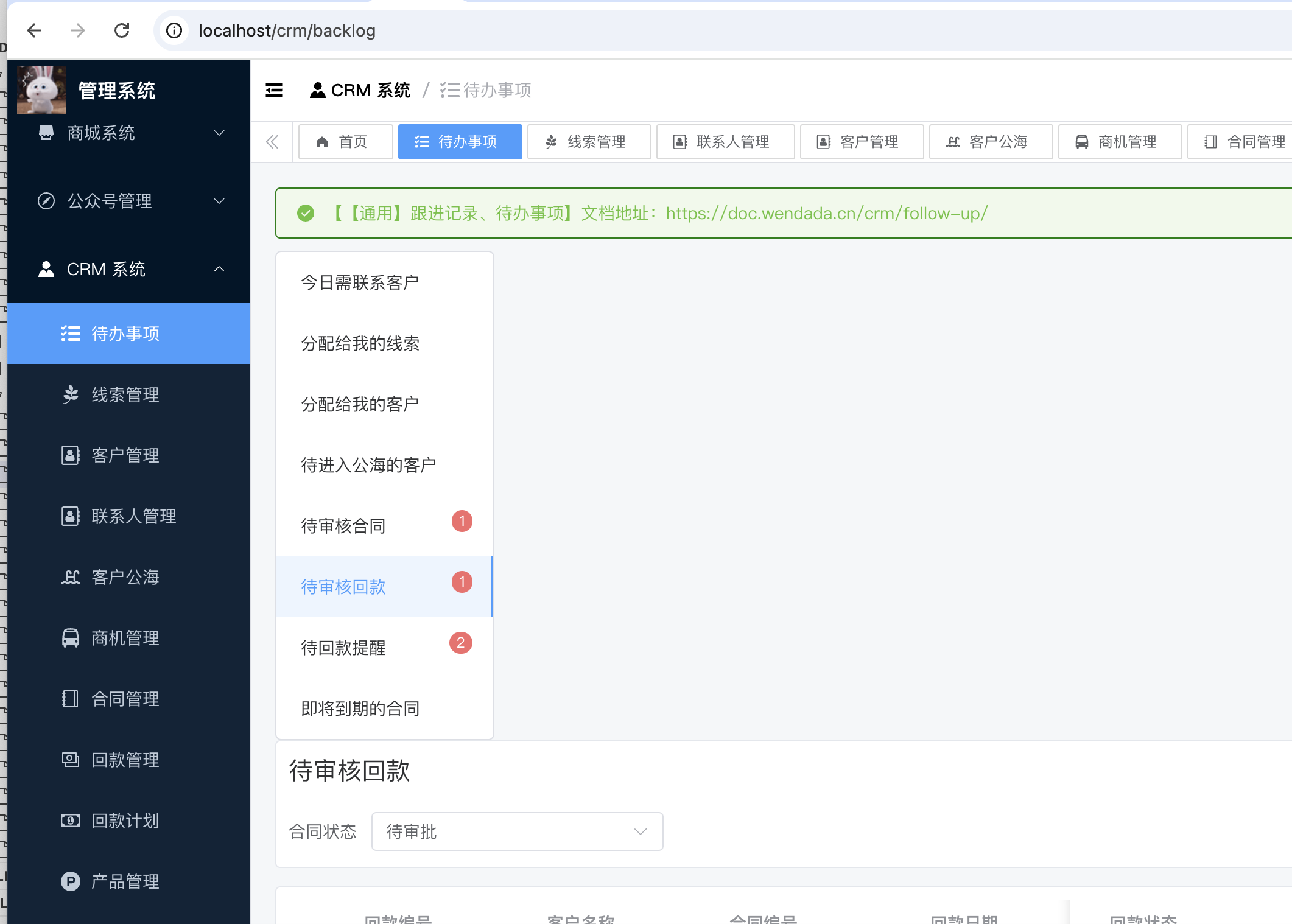

再次访问会员页面，无ERROR报错
